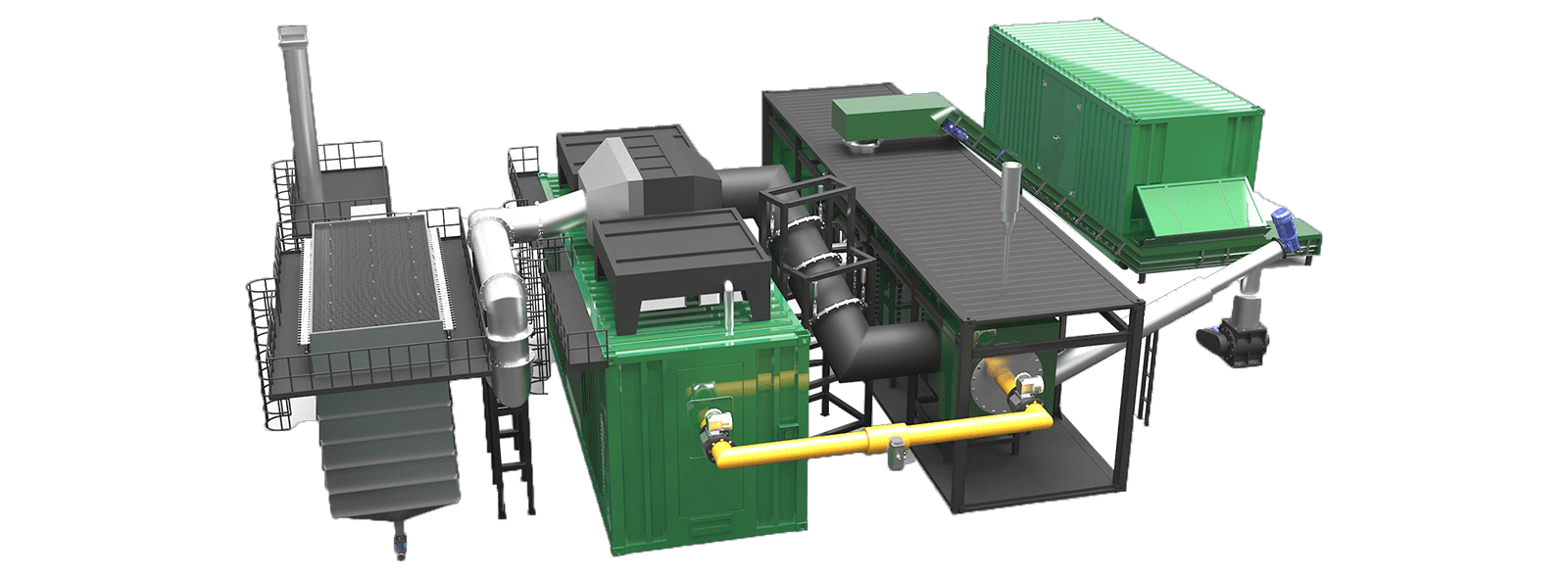

1. Chimney
2. Dust Removal System
3. Cooling System
4. Boiler System
5. Raw Material Storage System
6. Pyrolytic Carbonization System
7. Charcoal System
1
Chimney
2
Dust Removal System
3
Cooling System
4
Boiler System
5
Raw Material Storage System
6
Pyrolytic Carbonization System
7
Charcoal System
1. Chimney
2. Dust Removal System
3. Cooling System
4. Boiler System
5. Raw Material Storage System
6. Pyrolytic Carbonization System
7. Charcoal System
1
Chimney
2
Dust Removal System
3
Cooling System
4
Boiler System
5
Raw Material Storage System
6
Pyrolytic Carbonization System
7
Charcoal System
1. Chimney
2. Dust Removal System
3. Cooling System
4. Boiler System
5. Raw Material Storage System
6. Pyrolytic Carbonization System
7. Charcoal System
1
Chimney
2
Dust Removal System
3
Cooling System
4
Boiler System
5
Raw Material Storage System
6
Pyrolytic Carbonization System
7
Charcoal System




Model EUBC 100 EUBC 150
Feed Rate 200-400kg/h 300-600kg/h
Biochar Output 50-100kg 100-150kg
Feed Requirement Particle Size <20mm, Moisture Content <15%, Materials Easy To Flow
Type of Raw Material Various Kinds of Agricultural and Forestry Waste, Such As Straw, Rice husks, Coconut Shells.
Palm shells, Olive Shells, Nut Shells, Bamboo, Wood Chips, Sawdust, etc
Biochar Production Technology Continuous Pyrolysis
Working Pressure Micro Negative Pressure (-300~-50Pa)
Heating Method Indirect Heating
Auxiliary Fuel Diesel, Natural Gas, LPG, Biomass(syngas), etc.
Starting Heat(kcal) 3X10^5 4.5X10^5
Diesel Oil (kg/h) 30 45
Natural Gas (m³/h) 35 53
LPG (kg/h) 29 43
Biomass (kg/h) 125 188
Starting Heat Source 1~1.5h
Annual Running Time 7500h/a
Noise(dB) ≤65dB
Main Product Biochar
By-product Waste Heat or Carbon Sink
Main Furnace Size L7700MM*W2250MM*H3200MM L8700MM*W2450MM*H3350MM
Main Furnace Structure Two Chambers Integrated Furnace
Main Furnace Material Heated Parts 310s, Non-heated Parts 316L
Speed 0.5r~5r/m
Transmission Mode Internal Spiral Axis Rotates
Biochar Cooling Method Circulating Water Cooling
System Power(Standard) 24.4kw 31.5kw
Footprint(L*W*H, Standard) 18*12*3.7 20*12*3.9
Pyrolysis Furnace Weight(Standard) 12t 14t
Flue Gas Waste Heat Recovery 0.28MW 0.42MW
Bolier 0.25MW 0.36MW
Emission Standard EU2019
Site Operator 1 Person/Unattended
Flue Gas Purification Type Dry Dust Removal
Pyrolysisand Drying System Container 2*30'+2*40'Container 3*40'Container
Feed Additives
Production Of Filling Materials
Building Additives
Soil Conditioner
Feed Additives
Production Of Filling Materials
Building Additives
Soil Conditioner
Feed Additives
Production Of Filling Materials
Nut Shell
Rice Husk
Wood Chip
Coffee Bean Shell
Biomass Pellets
Chinese Medicine Dregs
Coconut Shell
Peanut Shell
Mahogany Pellets
Biomass Briquettes
Nut Shell
Rice Husk
Wood Chip
Coffee Bean Shell
Biomass Pellets
Chinese Medicine Dregs
Coconut Shell
Peanut Shell
Mahogany Pellets
Biomass Briquettes
