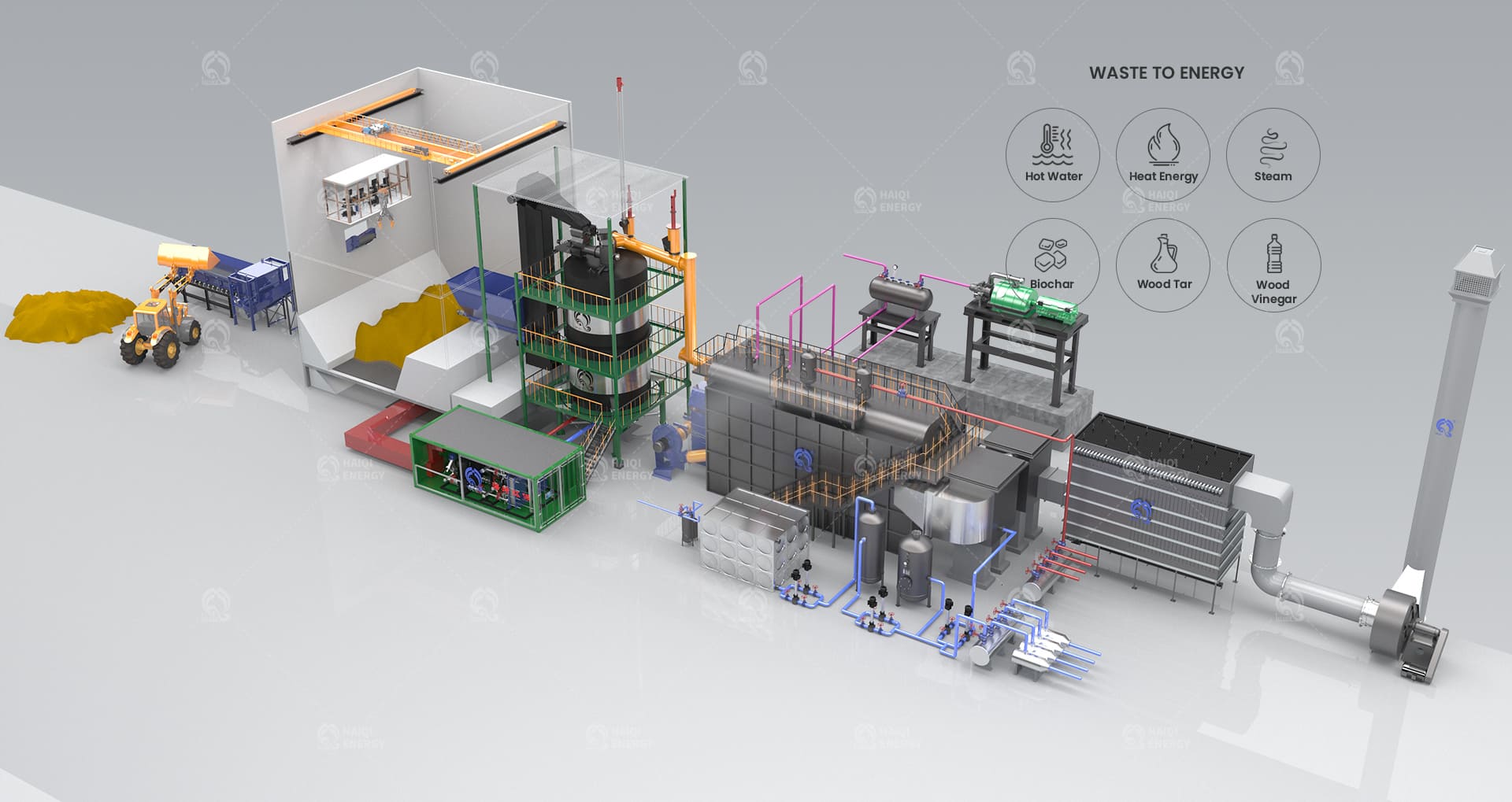

Biomass Gasification Steam Power Generation System

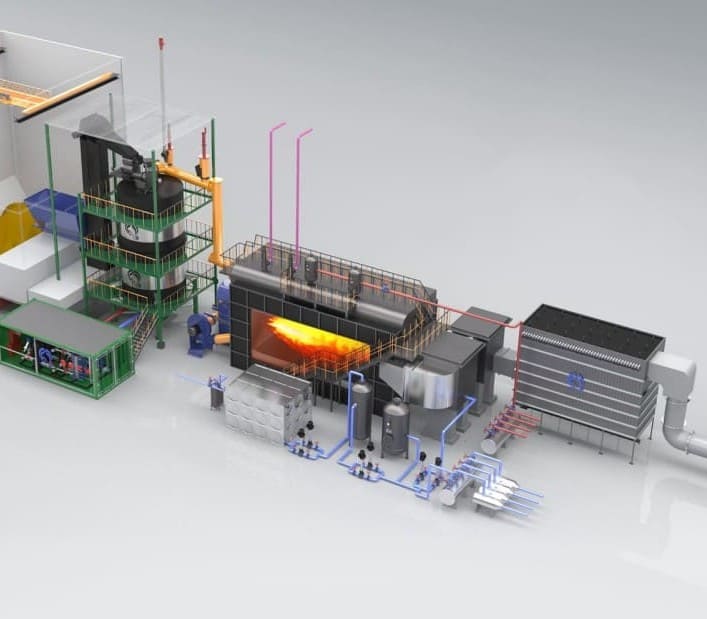

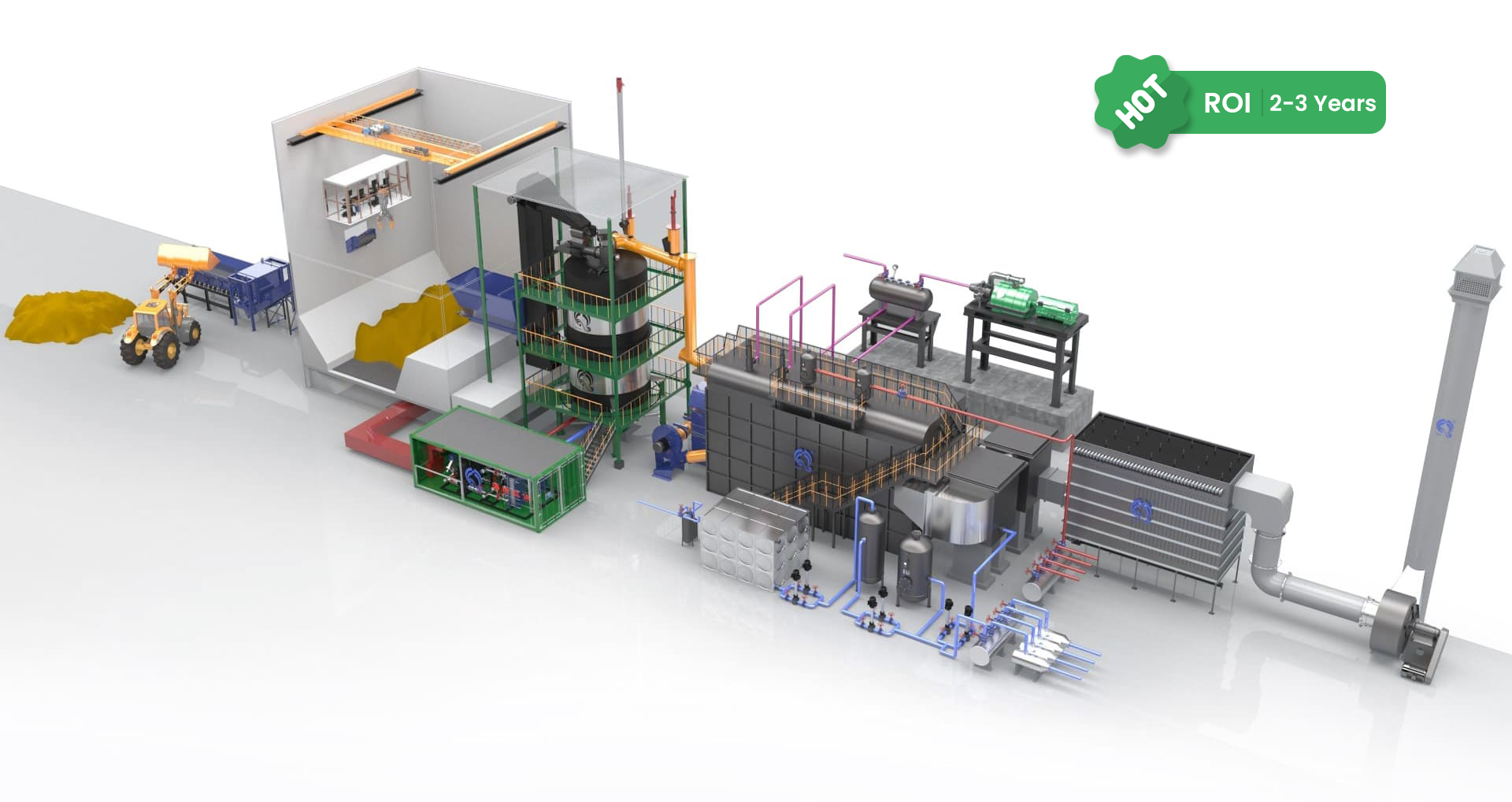

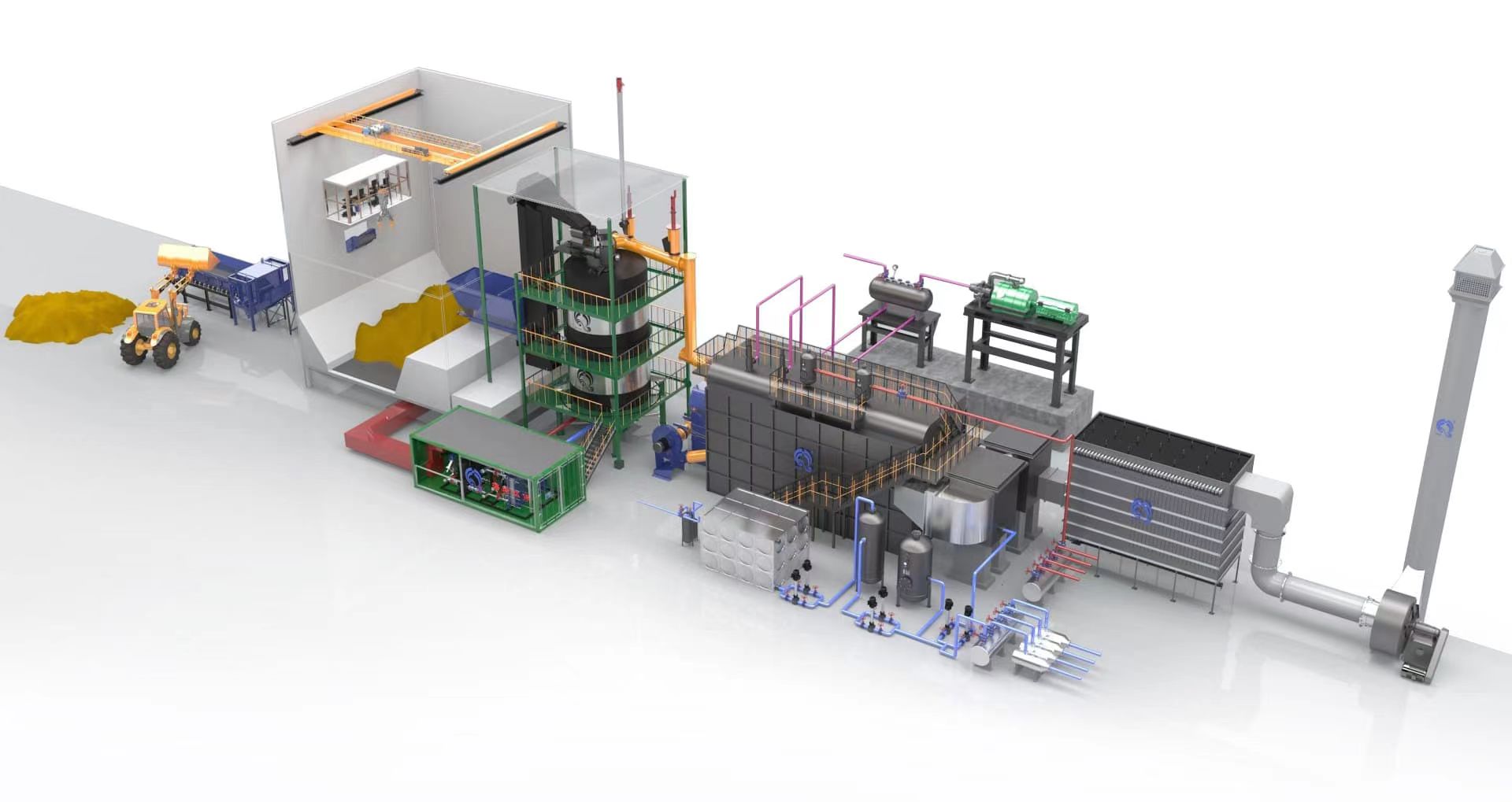

System Diagram

1. Crusher

2. Control room

3. Grab Crane

4. Raw Material Room

5. Circulation Water Heat Exchange System

6. Automatic Feeding System

7. Gasification System

8. Gas Burner

9. Gas Boiler

10. Steam Outlet

11. Gas Buffer Tank

12. Steam Turbine

13. Denitrification System

14. Bag Filter

15. Chimney

16. ID Fan

17. Soft Water Treatment System

18. Boiler Water tank

Crusher

Control room

Grab Crane

Raw Material Room

Circulation Water Heat Exchange System

Automatic Feeding System

Gasification System

Gas Burner

Gas Boiler

Steam Outlet

Gas Buffer Tank

Steam Turbine

Denitrification System

Bag Filter

Chimney

ID Fan

Soft Water Treatment System

Boiler Water tank

Combustible Gas Pipeline

Hot Air Pipeline

Hot Water Pipeline

Cold Water Pipeline

Steam Pipeline

Flue Gas Pipeline

Want to Know More? Click Here!

BIOMASS GASIFICATION

Advantages & Features

Haiqi Focus on Alternative Energy Services,Customized solutions for long-term operations and maintenance for projects of all sizes.

More Environmentally Friendly, More Energy-Saving

1.Biomass gasification and low-temperature cracking, the amount of fly ash soot produced by combustible gas after combustion is lower than that of direct combustion and incineration, which is more friendly to the environment.
2.The biomass gasification anaerobic combustion technology system has lower energy consumption, efficiency ≥80%, and the proportion of carbon and ash and slag can be adjusted according to user needs.
3.Lower energy consumption for the system, to make sure the operation cost of system effectively.

More Stable, More Intelligent

1.The system is intelligent interlocked and controlled by DCS, which can monitor the operating conditions of the system 24 hours in real time.
2.The 5G energy intelligent cloud system realizes online collection of data working conditions and helps users gain real-time insight into the stable working conditions of the system.The system monitors the multi-point safety smart valve in real time to help users solve potential safety problems.

The System Has High Energy Utilization Rate And Turns Waste Into Treasure

1.A wide range of raw material, high erergy utilization rate, can adjust the proportion of production of energy according to customers’ energy requirements.
2.Providing personalized customization according to the needs of users. Using the advantages of biomass gasification effiectively to achieve the demand of poly-generation energy supply.It’s more suitable for small-scale areas for Distributed small cogeneration system.

Lower Cost Of Operation

1.The system has low energy consumption, high energy utilization rate, low failure rate, and only one person on duty.
2.The system occupies a small area, simple operation, low NOX emission, low amount of fly ash, less consumption of exhaust consumables, low flue gas treatment cost.

Ready to save on energy costs? Inquire now!

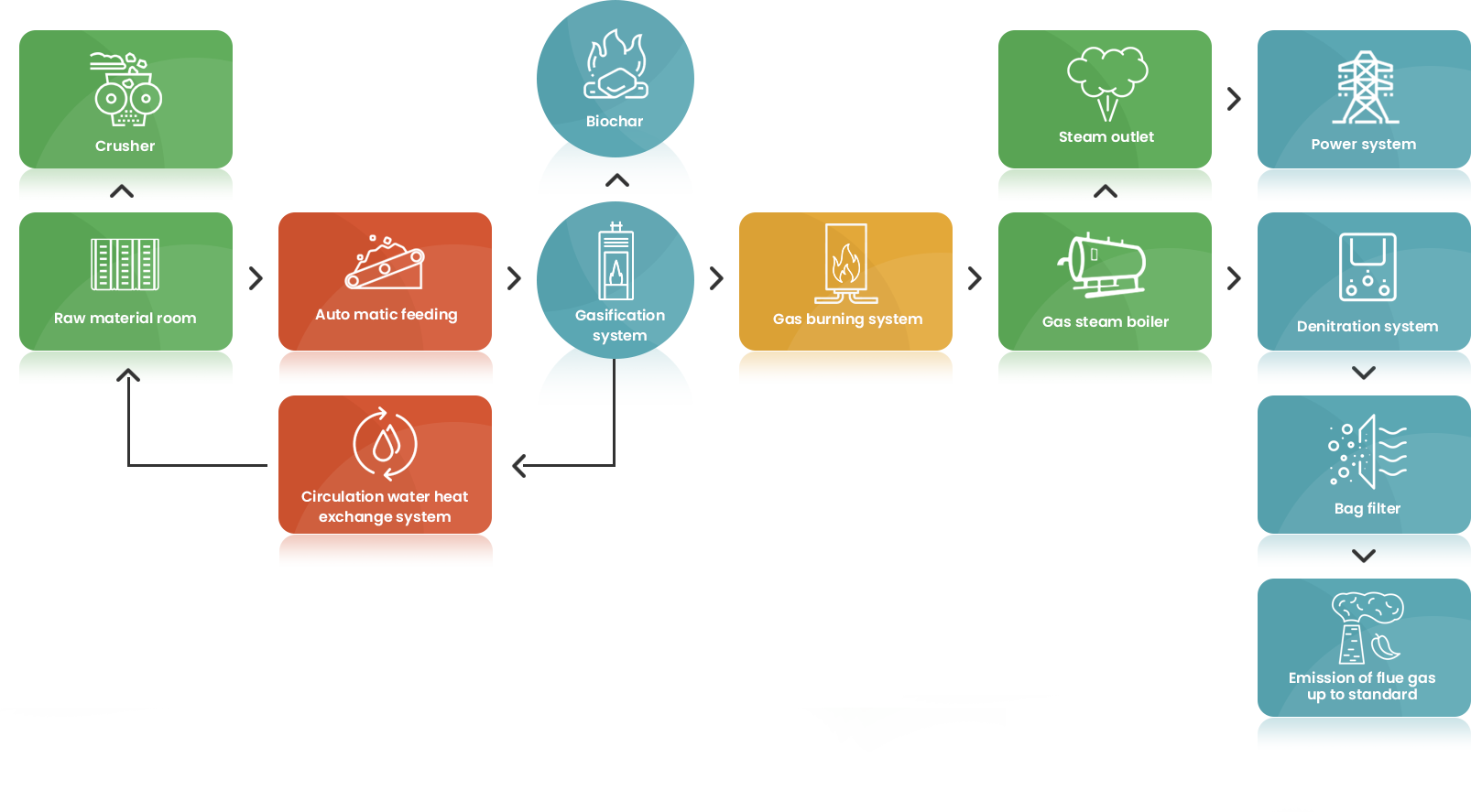

SYSTEM FLOW CHART

Biomass Gasification
Steam Power Generation System Flow Chart

Good economic benefits and superior environmental benefits play an important role in the development of green energy and energy conservation and emission reduction, and are the only way to promote green, circular and sustainable development.

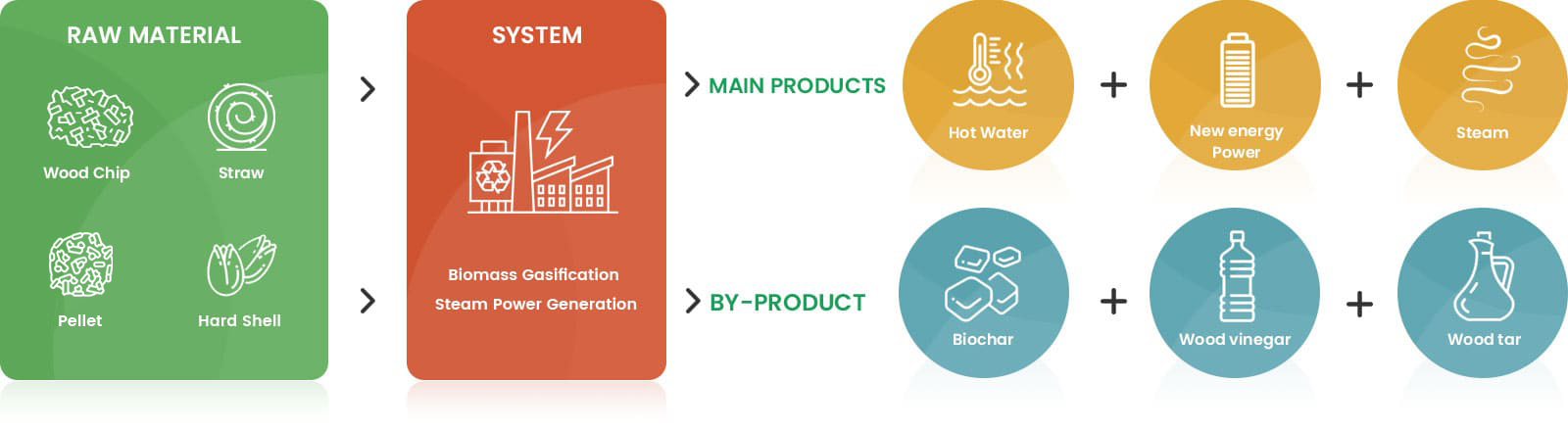

BY-PRODUCT DRAWING

Biomass Gasification
Steam Power Generation System By-Product Drawing

Better environmental protection and energy-saving benefits; realize the efficient, pollution-free, and resource-based utilization of agricultural and forestry biomass, resulting in significant economic, social and ecological benefits.

Turn Waste to Treasure - Enquire Now!

PARAMETERS TABLE

Parameters Of Biomass
Gasification Steam Power Generation System

Parameters Of Biomass Gasification Steam Power Generation System

Power Generation	1.5MW	3MW
Steam Turbine Model	N1.5-2.35；5.51，8.27	N3-2.35；5.33，16
Boiler Capacity	10t	20t
Steam Parameter	2.5MPa，400℃	2.5MPa，400℃
Gasifier Model	HQ-SR3200	HQ-SR4300
Gasification Effiency	≥75%	≥75%
Syngas Heating Value	1100~1450kcal/kg	1100~1450kcal/kg
Raw Material Consumption	2800kg/h	5600kg/h
Syngas Production	6160Nm³	12320Nm³
Heat Recovery	60* 10⁴kcal	120*10⁴kcal
Bag Filter	10t	20t
Electrical Control	DCS+Host computer	DCS+Host computer
Operating Power Consumption	320kw	620kw
System Footprint	1000m²	1500m²
The operating power consumption does not include the power consumption of log crushing equipment and feeding grab, and the footprint of the system does not include the log crushing site.

Application

Biomass Gasification Steam
Power Generation System Application Diagram

Seek ways to use the biomass gasification steam power generation system, which can not only solve the effective use of renewable energy, but also solve the environmental pollution of various organic wastes.
