Biomass Gasification For Drying And Calcination System

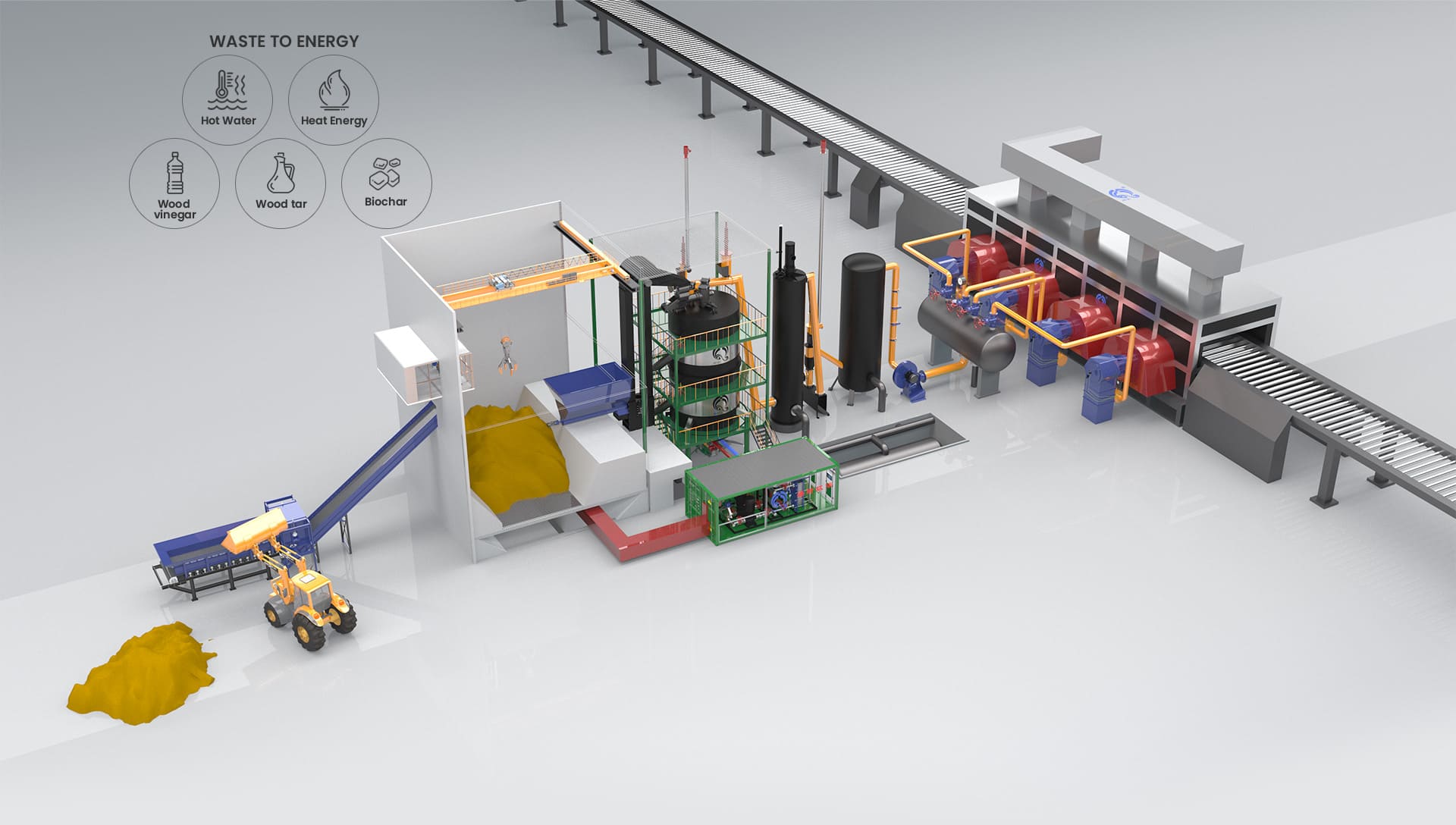

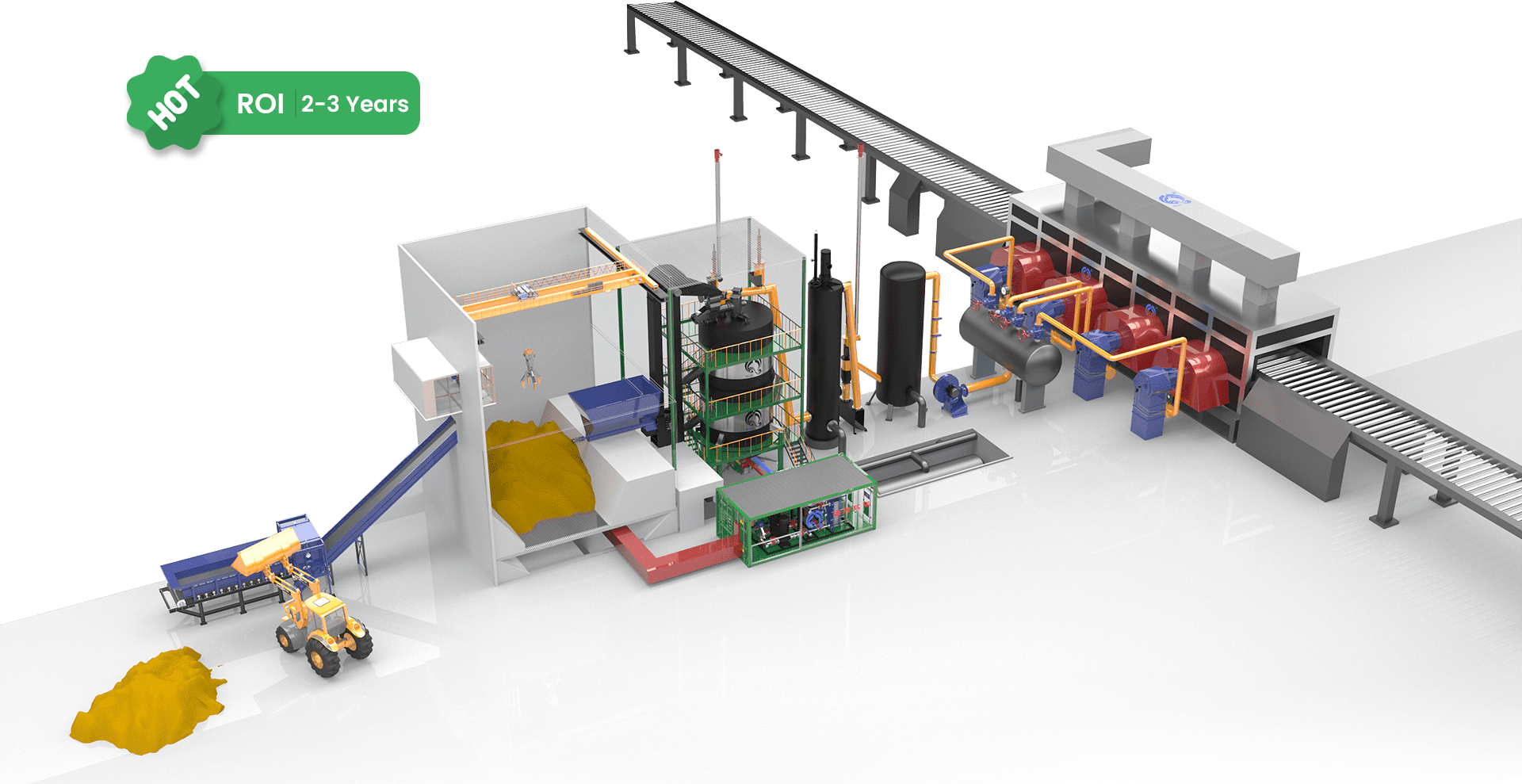

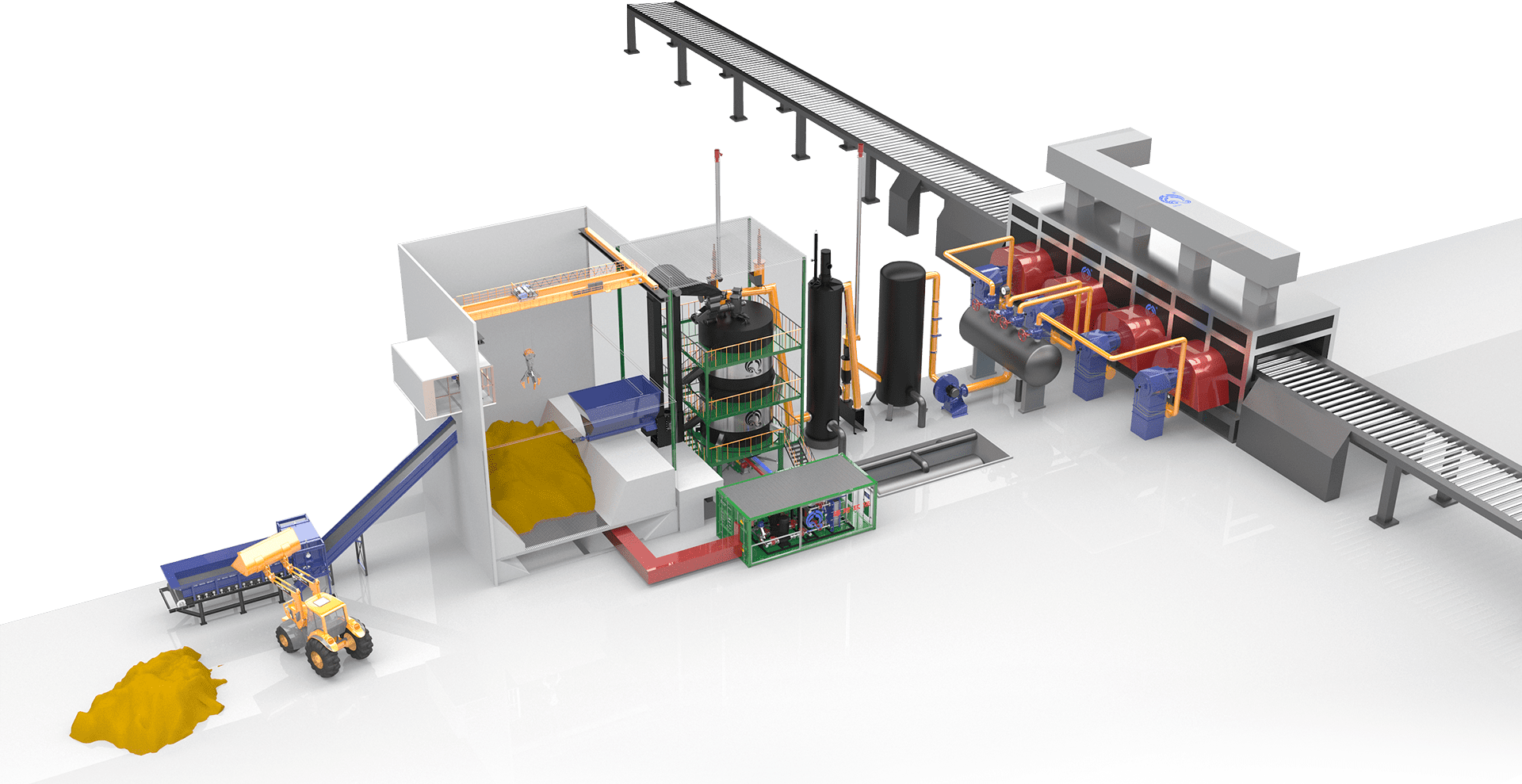

System Diagram

Biomass Gasification
For Drying And Calcination System

1. Crusher

2. Control Room

3. Grab Crane

4. Raw Material Room

5. Hot Air Pipeline

6. Gasification System

7. Eps

8. Dry Purification

9. ID Fan

10. Gas Buffer Tank

11. Gas Burner

12. Drying Oven

13. Hot Air Outlet

14. Underground Tar Tank

15. Circulation Water Heat Exchange System

Crusher

Control Room

Grab Crane

Raw Material Room

Hot Air Pipeline

Gasification System

Eps

Dry Purification

ID Fan

Gas Buffer Tank

Gas Burner

Drying Oven

Hot Air Outlet

Underground Tar Tank

Circulation Water Heat Exchange System

Combustible Gas Pipeline

Hot Air Pipeline

Tar Pipeline

Hot Water Pipeline

Cold Water Pipeline

Want to Know More? Click Here!

BIOMASS GASIFICATION

Advantages & Features

Haiqi Focus on Alternative Energy Services,Customized solutions for long-term operations and maintenance for projects of all sizes.

Cleaner And More Environmentally Friendly

1.Haiqi biomass gasification system is used to transform traditional natural gas drying system, industrial calcination, industrial kilns, etc., which is cleaner, more stable, more efficient and lower cost.
2.A wide range of raw materials, renewable biomass fuel can be used, more green than fossil energy, lower cost, more environmentally friendly.
3.The gas temperature is high, and the temperature of hot air can be automatically adjusted according to the user's needs.
4.The cost of biomass gas is only 20%~30% of the cost of natural gas, and its economic value is considerable, which has an absolute advantage in industrial transformation projects.

Intelligent, Digital Intelligence

1.The system can be upgraded according to the user's original drying equipment, so as to realize the intelligent operation of the whole system and provide stable working conditions of the system operation.
2.It can provide 24-hour unattended solutions according to customers’ needs.
3.The system adopts multi-point control to detect the pressure, temperature and flow of the drying system online, and automatically adjust it according to different working conditions.

Safer, More Reliable

1.Haiqi biomass gasification system adopts intelligent interlocking system and user drying system interlock to ensure the reliability, continuity and stability of the system.
2.Ai multi-point collection system information, effectively avoid safety hazards, multi-point safety check valve, can automatically cut off flame retardant and explosion-proof in emergency, can effectively avoid the occurrence of safety accidents.
3.System operation more reliable, can provide stability, continuity, reliability for system operation.

Easier System Maintenance

1.The system structure is simple, easy to operate, easy to use, easy to maintain.
2.According to customer requirements to provide automatic system cleaning function, to achieve one-click cleaning.
3.Anti-blocking and explosion-proof, the system reminds users of maintenance time and maintenance cleaning area according to intelligent sensors.
4.The smart valve of the system helps users improve the explosion-proof function and eliminate potential safety hazards.

Ready to save on energy costs? Inquire now!

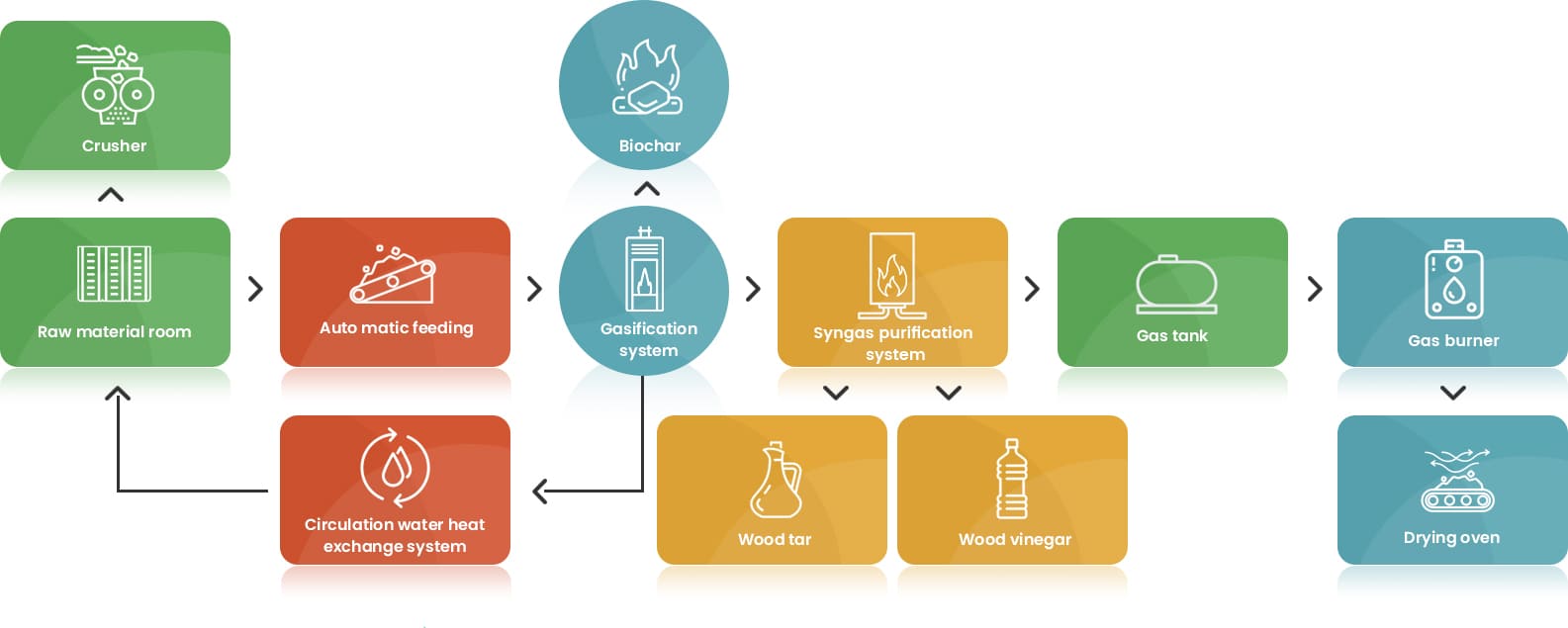

SYSTEM FLOW CHART

Biomass Gasification
For Drying And Calcination System Flow Chart

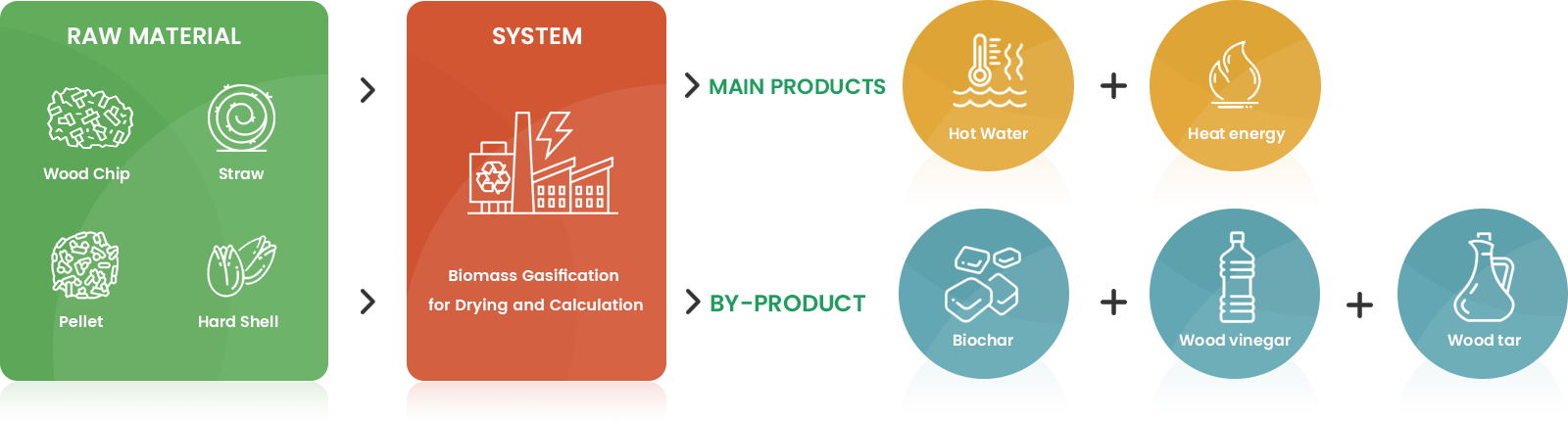

Good economic benefits and superior environmental benefits play an important role in the development of green energy and energy conservation and emission reduction, and are the only way to promote green, circular and sustainable development.

BY-PRODUCT DRAWING

Biomass Gasification For Drying And Calcination
System By-Product Drawing

Better environmental protection and energy-saving benefits; realize the efficient, pollution-free, and resource-based utilization of agricultural and forestry biomass, resulting in significant economic, social and ecological benefits.

Turn Waste to Treasure - Enquire Now!

PARAMETERS TABLE

Parameters Of Biomass
Gasification For Drying And Calcination System

Parameters Of Biomass Gasification For Drying And Calcination System

Maximum Boiler Capacity	4t	6t	10t	15t	20t	25t
Gasifier Model	HQ-SR2200	HQ-SR2600	HQ-SR3000	HQ-SR3600	HQ-SR4000	HQ-SR4300
Gasification Efficiency	≥75%	≥75%	≥75%	≥75%	≥75%	≥75%
Syngas Heating Value	1100~1450kcal/kg	1100~1450kcal/kg	1100~1450kcal/kg	1100~1450kcal/kg	1100~1450kcal/kg	1100~1450kcal/kg
Raw Material Consumption	1000kg	1500kg	2500kg	3750kg	5000kg	6250kg
Syngas Production	2200Nm³	3300Nm³	5500Nm³	8250Nm³	11000Nm³	13750Nm³
Burner Heating Power	2.8MW	4.2MW	7MW	10.5MW	14MW	17.5MW
Heat Recovery	24*10⁴kcal	36*10⁴kcal	60*10⁴kcal	90*10⁴kcal	120*10⁴kcal	150*10⁴kcal
Bag Filter	4t	6t	10t	15t	20t	25t
Operating Power Consumption	35.5kw	42.5kw	51kw	80kw	98.5kw	122kw
System Footprint	430m²	500m²	600m²	700m²	850m²	1000m²
The operating power consumption does not include the power consumption of log crushing equipment and feeding grab, and the footprint of the system does not include the log crushing site.

Application

Biomass GasificationFor Drying And Calcination

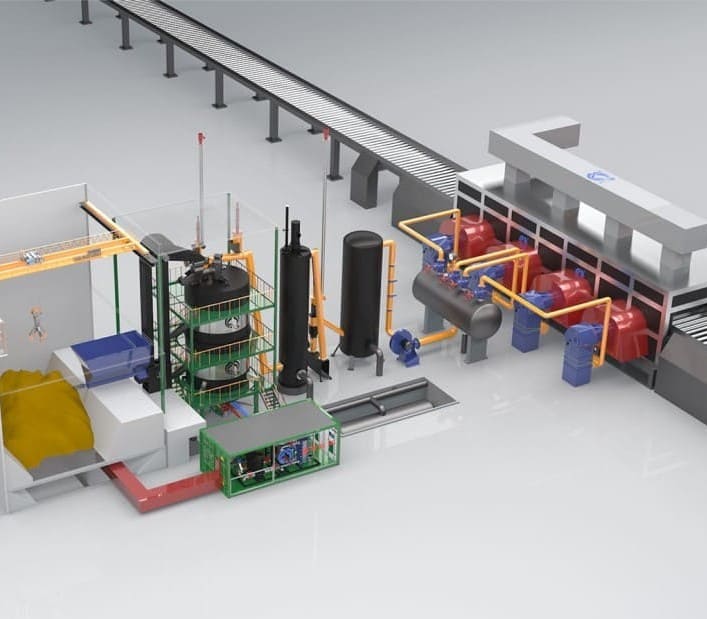

System Application Diagram

Biomass gasification technology has changed the traditional way of directly burning biomass to obtain energy. Through gasification technology, biomass is converted into clean combustible gas, which greatly improves the use range of biomass energy.

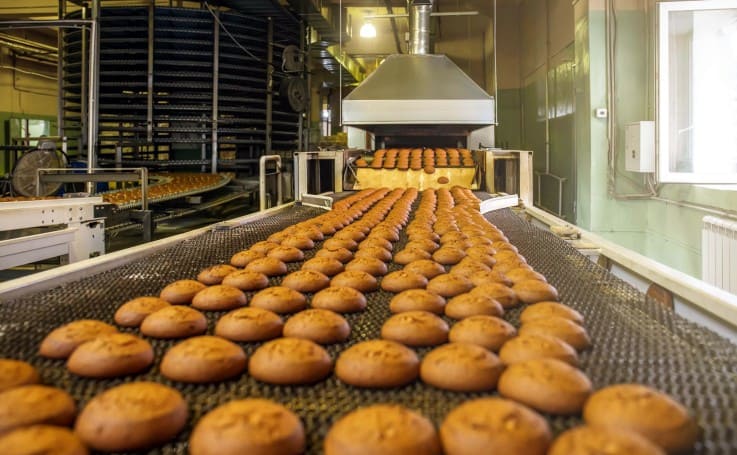

Bread Drying Industry

Ceramic Drying Industry

Potato Chips Drying Industry

Biscuit Drying Industry
