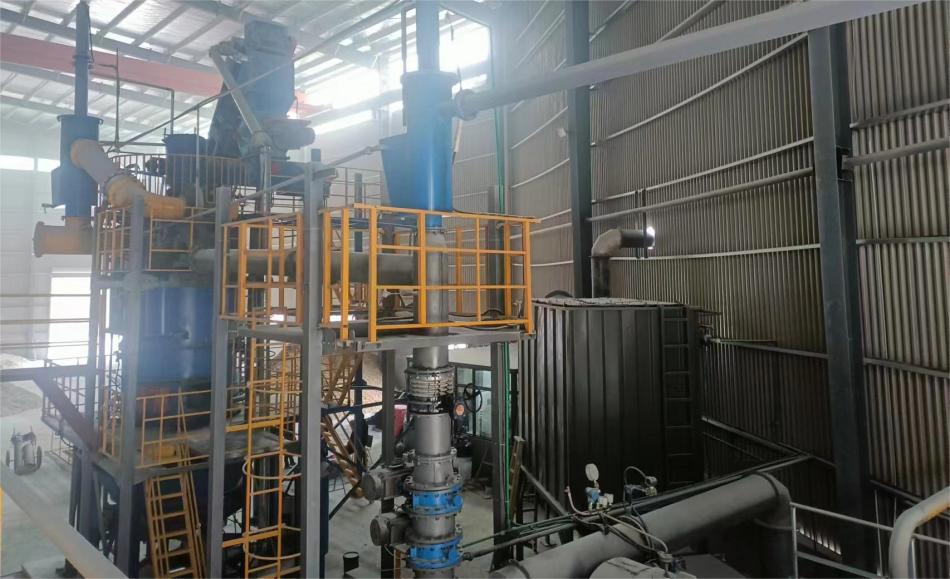

Biomass Gasifier Docked with Boiler Project in China

September 2022, the gasifier docked with boiler project contracted by Haiqi was officially put into operation in Quzhou City, Zhejiang Province, converting bamboo chips into a sustainable heat source for steam production. The successful implementation of this project marks that the integrated design of biomass gasification technology and steam boiler system provides an innovative solution for renewable energy.


Project Overview

Feedstock	Bamboo Chips
Processing Capacity	800-1000 kg/h
Operation Mode	Continuous Operation
Supporting Equipment	Steam Boiler

Key Components and System Process



Feedstock Preparation and Feeding System:

Feedstock Processing: Bamboo chips are pre-processed to ensure uniform size and , suitable for efficient gasification. The processed bamboo chips are then continuously fed into the gasification reactor through a well-designed feeding system.
Feeding Mechanism: The feeding system ensures a consistent and controlled supply of bamboo chips into the gasification furnace, optimizing the gasification process and maintaining steady operation.


Gasification System:

Gasification Reactor: The heart of the system is the gasification reactor, where bamboo chips undergo pyrolysis and oxidation in a controlled environment. This process produces syngas, a mixture of carbon monoxide (CO), hydrogen (H2), and methane (CH4).


Control and Monitoring System:

Automated Control: The integrated system features advanced automation, with multiple sensors and control units ensuring precise operation, safety, and efficiency.
Remote Monitoring: The control system is equipped with remote monitoring capabilities, allowing for real-time tracking and adjustments to optimize performance.


Economic and Environmental Advantages

Efficient Resource Utilization: By utilizing bamboo chips, a renewable and abundant resource, the project promotes sustainable resource management and reduces dependency on fossil fuels.

Continuous Operation: The continuous operation mode ensures a stable and reliable supply of steam, enhancing productivity and operational efficiency.

Emission Reduction: The clean combustion of syngas leads to lower emissions of pollutants and greenhouse gases, contributing to environmental protection and compliance with stringent emission standards.
